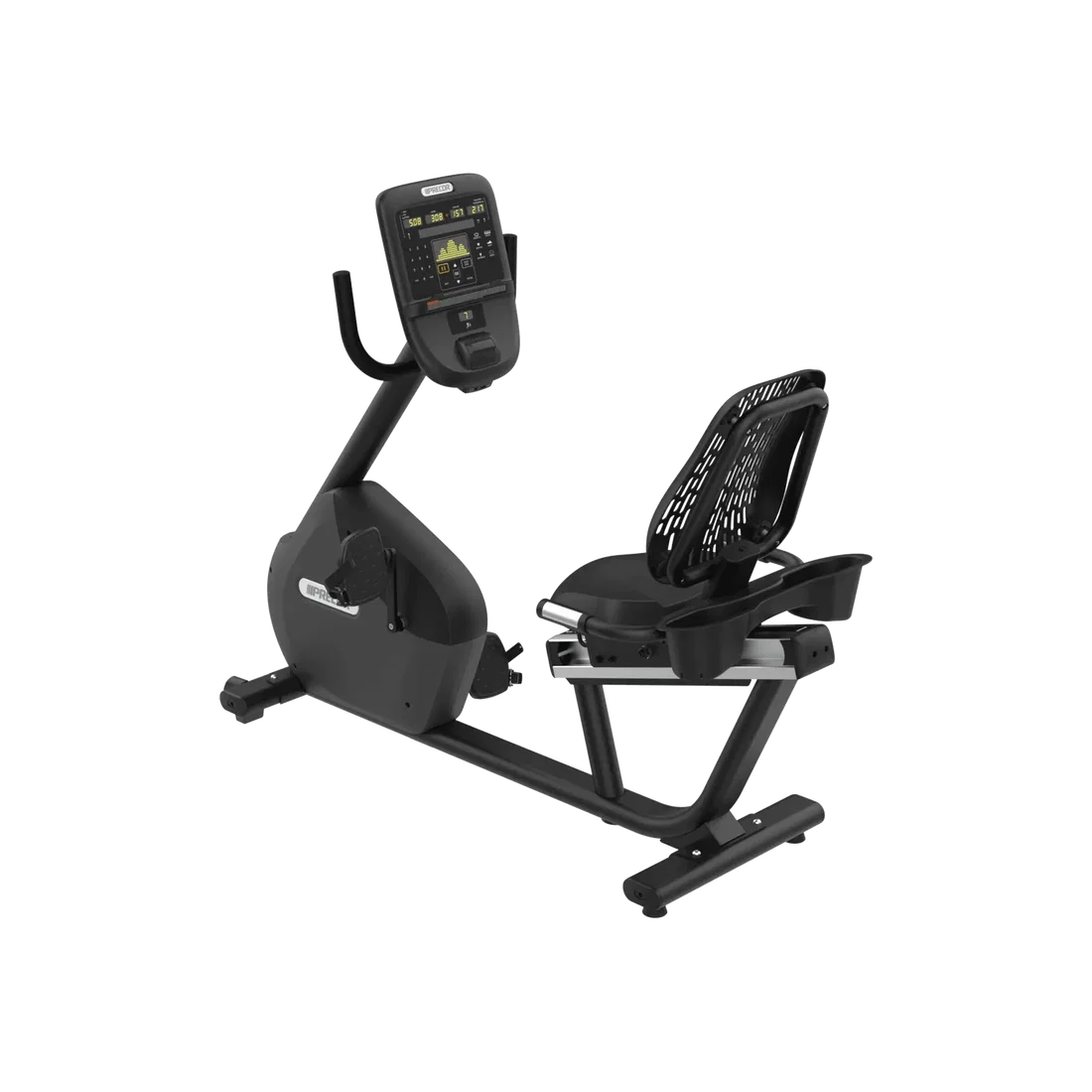

Precor RBK 635 Recumbent Bike

The Experience™ Series 600 Line are professional recumbent stationary bikes featured in corporate wellness studios, personal training studios, multi-family complexes, and physical therapy centers that strikes the optimal balance between durability, reliability, and innovation. The 600 Line of recumbent bikes feature simple seat adjustments and a ventilated air flex seat that provides exceptional comfort.  The single-sided pedals are integrated with pedal straps that comfortably accommodate feet of all sizes and allow for proper pedaling form.  Each bike in this line also features an integrated handheld heart rate that integrates with most 5 MHz HR chest straps. The 600 Line of recumbent bikes features three models, RBK 635, RBK 665, and RBK 685. The difference between each model is the console (P30, P62, or P82) and is available in a  Black Pearl frame.

 The RBK635 recumbent bike features the P31 console and a step-through design to appeal to a wide range of exercisers. The simple seat adjustment allows the user to change the position of the seat with one hand, either on or off the bike. A ventilated air flex seat provides exceptional comfort. This bike is a cost-effective option for a broad range of environments such as corporate gyms, apartment complexes, and fire departments.

Commercial Design

Step-through design for easy mounting,  ventilated air flex seat, and dual-sided pedals make the RBK635 a durable, well design product.  Access to under the shroud is easy for your servicers as they do not have to remove pedals or cranks.

Proprietary Innovations

The recumbent bike includes features like the air flex seat with a ventilated panel and unique suspension system for a cool, cushioned ride.  A simple seat adjustment allows the exerciser to change the position of the seat with one hand, either on or off the bike.

P31 Console

An LED console that works harder for you, your servicers, and your exercisers. Get integrated asset management to supercharge your service techs with extra information, right at their fingertips. Exercisers will enjoy the well-placed channel and volume change controls.

Equipment Features



Covers
Covers are attached with minimal hardware and can be removed without taking off the pedals or cranks.


Cable Management
Optional


Accessories Holder(s)
Yes


Transport Wheels
Integrated


Biomechanics
To achieve proper pedaling biomechanics, Precor designed the recumbent bike to maintain similar biomachines as developed for the upright bike. That means setting the angle of the seat rail with an offset from the crank to aid with efficient pedaling and reduced shear force on the knee. The seat rail angle is at 15 degrees with a slight offset from the crank axle. This places the knee directly over the ball of the foot (or pedal spindle) when the pedals are in the 2 and 8 o'clock positions.


Frame
Two-step powder-coating process on steel frame.


Seat
The new, compact molded seat back features a "floating" suspension system that allows the seat back to move with the user for unsurpassed comfort. The ergonomic, curved design and ample ventilation further enhance user comfort, and the polypropylene material is virtually indestructible.


Bearings
Pedal axles and bearings are designed for smooth operation and exceptional service life.


Seat Adjustment
The simple seat adjustment allows the exerciser to change the position of the seat with one hand, either on or off the bike.


Handlebars
\Over-sized, single-sided pedals with integrated pedal strap comfortably accommodates feet of all sizes, which allows proper pedaling form. The weighted pedals allow for easy placement of foot on the pedal.


Pedals
Over-sized, single-sided pedals with integrated pedal strap comfortably accommodates feet of all sizes, which allows proper pedaling form. The weighted pedals allow for easy placement of foot on the pedal.


Step-Through Design
The RBK 635 recumbent bike features a step-through design with a very low step-over height.


Ergonomics
The riding cockpit is designed with sound ergonomics. The seat pads are angled for optimal comfort, maximum low-back support, and minimal interference with the movement of the exerciser's legs. The console is mounted at an optimal viewing angle, with the machine controls within easy reach.





Resistance System



Minimum Watts
22 (level 1 at 20 RPM)


Maximum Watts
500 (level 25 at 150 RPM)


Resistance Levels
25


3-Piece Crank
3-piece compact crank assembly tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal.


Drive System
The single stage drive system is designed to yield smooth, quiet operation and a consistent resistance progression.


3-Phase Generator
3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike.


Belt Drive
Belt drive for smoother, quieter operation and reduced maintenance.





Console Features



Display Type
Advanced LED


Numeric Keypad
Yes


Motion Controls
Yes


QuickStart™
Yes


Tactile Dome Keys
Yes


Console Language(s)
English, French, German, Hebrew, Italian, Japanese, Portuguese, Russian, Spanish


Units Selection
Metric and U.S. Standard


Maximum Pause Time (Pause)
30 seconds (cordless)<br /> 2 minutes - adjustable (using optional plug-in adapter)


Preset Programs
12 programs accessed by 6 keys:
Manual
Variety
Cross Country
Random
Custom Resistance
Weight Loss
Interval
1:1
1:2
1:3
Heart Rate Control
Basic HRC
Performance
Fitness Test
Hill Climb
Watts Control


Electronic Readouts
Resistance Level

Speed, RPM, Distance
Calories
Heart Rate
Time Elapsed, Time Remaining

% Complete, Time in Zone, Segment Time Remaining, Average Speed, Calories / minute, Calories / hour, Watts, METS, Target HR, Average HR





Heart Rate Monitoring



Touch
Touch heart rate sensors located conveniently on handlebars next to seat.


Telemetry
Integrated telemetry heart rate reads heart rate from a user's 5 KHz HR chest strap.


Heart Rate Sensor Advisory

The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions.






Integrated Entertainment Options



Closed Captioning
Yes, CC1-4, Text 1-4 (North America only)


Video decoding
MPEG-2, MPEG-4, H.264


Global TV Support
NTSC, ATSC, PAL, SECAM, DVB-T/T2/C, ISDB


Mobile Device Charger
Yes


Reading Rack
Integrated


Personal Viewing System (PVS)
Optional 15.6 in / 39.6 cm screen


Video inputs
RF





Network Capabilities



Diagnostics
Ability to set club parameters, e.g. to limit exercise time and pause time.


CSAFE Enabled
Yes





Equipment Specifications



Maximum User Weight
350 lb / 159 kg


User Height Range
59 to 77 inches / 150 to 196 cm


Standard Frame Colors
Black Pearl





Equipment Dimensions and Weight



Height with PVS
63 in / 160 cm


Length
65 in / 165 cm


Width
23 in / 58 cm


Height
51 in / 130 cm


Equipment Weight
179 lb / 81 kg





Shipping Dimensions and Weight



Length
66 in / 168 cm


Width
23 in / 58 cm


Height
28 in / 71 cm


Shipping Weight
203 lb / 92 kg





Power Requirements



Equipment
No voltage ratings. Self-Powered


International 240 VAC
Applicable country-specific power cord


U.S. & Canada 120 VAC
120V/15A circuit with 5-15R NEMA receptacle


Personal Viewing Screen (PVS)
Powered


Optional Power Supply
Optional power supply available if long time periods of no use or need display to be continuously lit longer than 30 seconds after workout ends.





Regulatory



IEC CB
Yes


cTUVus
Yes


FCC
Yes


ETL
Yes


CE
Yes


EN957
Yes
